Rubberlined Butterfly Valves

We offer an extensive range of extremely durable butterfly valves under the well-known brand name Wouter Witzel. With our multiple choice in styles, materials and sizes, we cover many light- general- and heavy duty applications. Our famous and unique vulcanized bonded liner and profiled disc design has taken functional performance to highest levels.

True dedication creates a clear value proposition to our customers. Decades of application driven know-how, material behavior research and innovation in efficient manufacturing technologies, resulted in our excellent product performance.

Designed in compliance to latest international standards and regulations, we make sure to meet latest environmental friendly requirements. For many years, Wouter Witzel rubber lined butterfly valves are exchanged against conventional types of valves.

Double flanged body

Bolted to pipe flanges, suitable for end-of-line duty

Rubberlined EVFS-i

Short pattern double flange face-to-face

End-of-line duty by through bolting to pipe flanges

Disc edge protection by fewer disc-to-pipe-protrusion

More information Rubberlined EVFL-i

Long pattern double flange face-to-face

End-of-line duty by through bolting to pipe flanges

Disc edge protection by no disc-to-pipe-protrusion

More information Rubberlined EVFS

Short pattern double flange face-to-face

End-of-line duty by through bolting to pipe flanges

Disc edge protection by fewer disc-to-pipe-protrusion

More information Rubberlined EVFL

Long pattern double flange face-to-face

End-of-line duty by through bolting to pipe flanges

Disc edge protection by no disc-to-pipe-protrusion

More information Rubberlined EVFS-N More information

Flangeless wafer body

Clamped between flanges, suitable for in-line duty only

Rubberlined EVS

Short pattern wafer face-to-face

Ring type for maximum weight reduction and cost saving

Centring between pipe flange bolts

More information Rubberlined EVS-i

Short pattern wafer face-to-face

Ring type for maximum weight reduction and cost saving

Centring between pipe flange bolts

More information Rubberlined EVBS

Short pattern wafer face-to-face with guiding lugs to fit ISO PN10/16 flange standard

Ring type with 4 bolt guiding lugs for easy assembly between pipe flangesOptional en-of-line duty at reduced pressure

Optional end-of-line duty at reduced pressure

More information Rubberlined EVCS

Short pattern wafer face-to-face with guiding lugs to fit class 150 and PN6 flange standard

Ring type with 4 bolt guiding lugs for easy assembly between pipe flanges

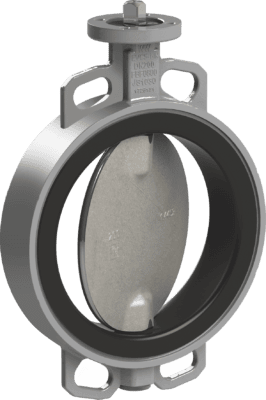

More information Rubberlined EVCS-i

Short pattern wafer face-to-face with guiding lugs to fit class 150 and PN6 flange standard

Ring type with 4 bolt guiding lugs for easy assembly between pipe flanges

More information Rubberlined EVCLS-i

Short pattern wafer face-to-face with guiding lugs to fit ISO PN10/16 flange standard and extended neck

Ring type with 4 bolt guiding lugs for easy assembly between pipe flangesOptional en-of-line duty at reduced pressure

Extended neck to fit into insulated pipe systems

More information Rubberlined EVBLS

Short pattern wafer face-to-face with guiding lugs to fit ISO PN10/16 flange standard and extended neck

Ring type with 4 bolt guiding lugs for easy assembly between pipe flangesOptional en-of-line duty at reduced pressure

Extended neck to fit into insulated pipe systems

More information Rubberlined EVS-N

Short pattern wafer face-to-face

Ring type for maximum weight reduction and cost saving

Centring between pipe flange bolts

More information Rubberlined EV-alu

Cast Aluminium Alloy body

Vulcanized elastomer seat vacuum proof low operation torque high frequency of operation

ISO 5211 Actuator mounting pad

More information

Single flange or lugged wafer body

Clamped between flanges, suitable for end-of-line duty

Rubberlined EVMS-i

Short pattern wafer face-to-face single (mono)flange

End-of-line duty by through bolting to one of the pipe flanges

More information Rubberlined EVMS

Short pattern wafer face-to-face single (mono)flange

End-of-line duty by through bolting to one of the pipe flanges

More information Rubberlined EVML

Long pattern wafer face-to-face single (mono)flange

End-of-line duty by through bolting to one of the pipe flanges

More information Rubberlined EVTLS

Short pattern wafer face-to-face with drilled and threaded holes

Available with Metric or Unified thread standard

End-of-line duty by removing pipe flange form either side

More information Rubberlined EVTLS-i

Short pattern wafer face-to-face with drilled and threaded holes

Available with Metric or Unified thread standard

End-of-line duty by removing pipe flange form either side

More information Rubberlined EVMS-N

Short pattern wafer face-to-face single (mono)flange

End-of-line duty by through bolting to one of the pipe flanges

More information Rubberlined EVTLS-N

Short pattern wafer face-to-face with drilled and threaded holes

Available with Metric or Unified thread standard

End-of-line duty by removing pipe flange form either side

More information

U-section wafer body

Clamped between flanges, suitable for end-of-line duty

Rubberlined EVUS-i

Short pattern wafer face-to-face with double flanges

End-of-line duty by through bolting to one of the pipe flanges

More information Rubberlined EVUS

Short pattern wafer face-to-face with double flanges

End-of-line duty by through bolting to one of the pipe flanges

More information
